典型应用
|
说明 |
| 1、大功率直流电机控制 2、焊接设备 3、整流设备 4、充电电源 |
除非另作说明，表中参数均是在Tjm（150℃）下的测试值。 |
|
型号
|
IF(AV)
|
VDRM/VRRM
|
ITSM
|
I2t
|
IRRM
|
VFM/IFM
|
VFO
|
RT
|
RTH(J-HS)
|
安装力
|

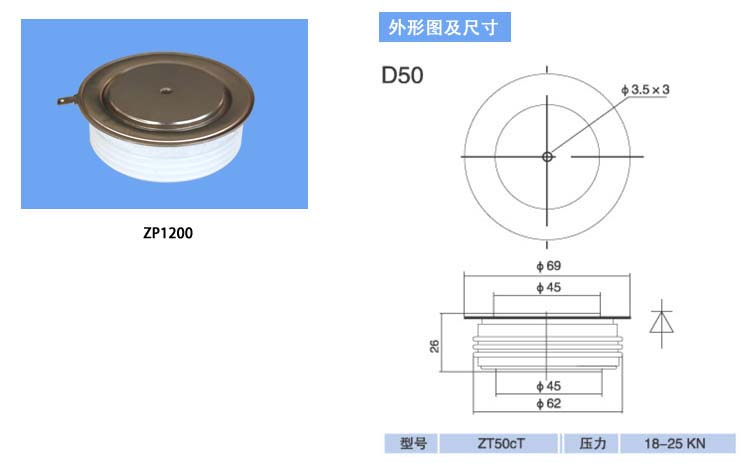

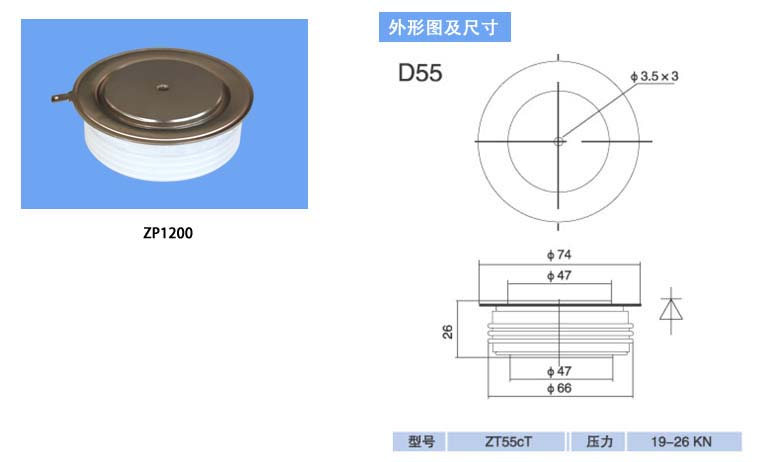

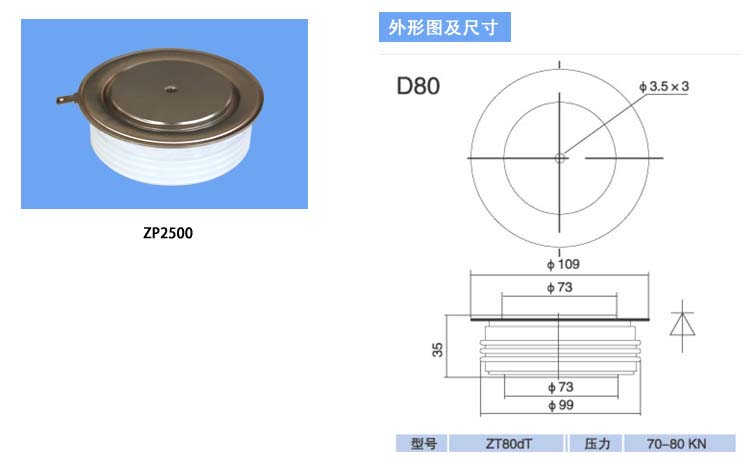

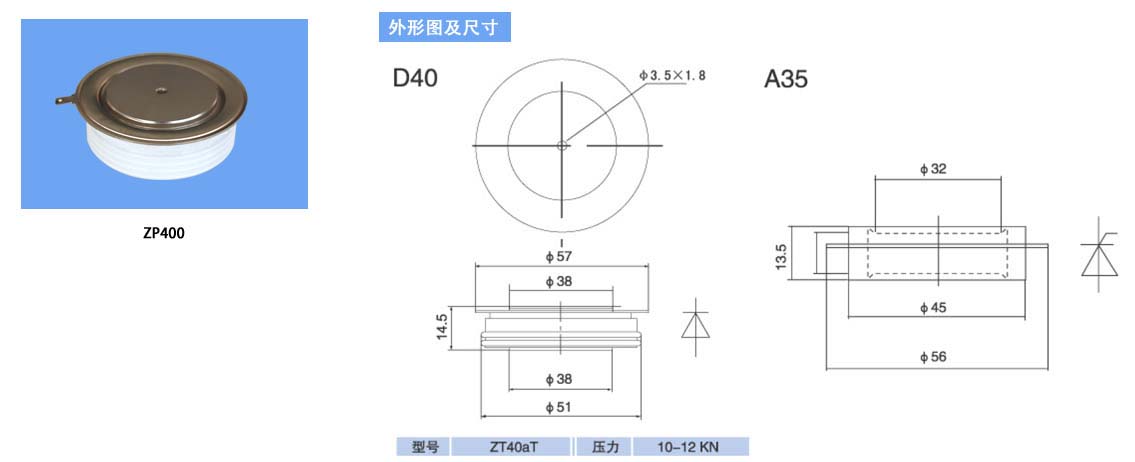

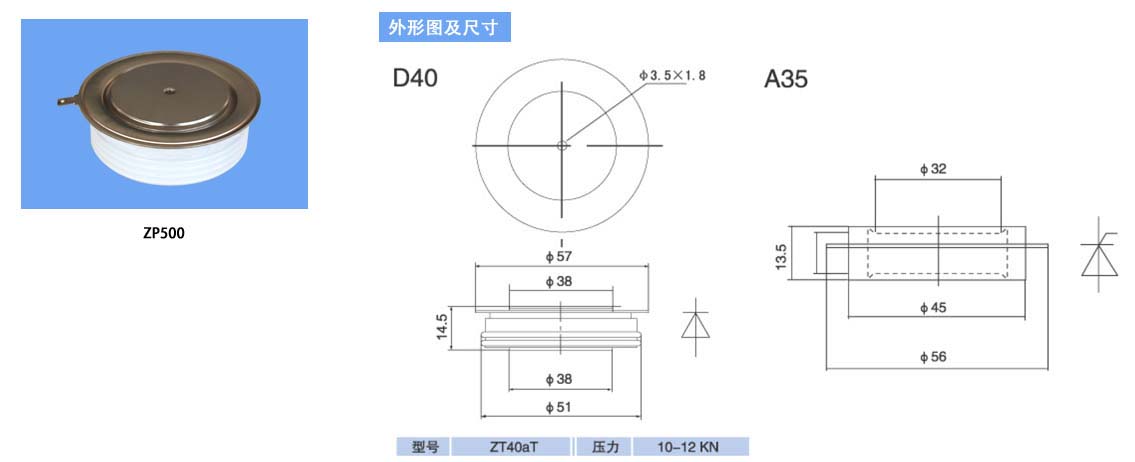

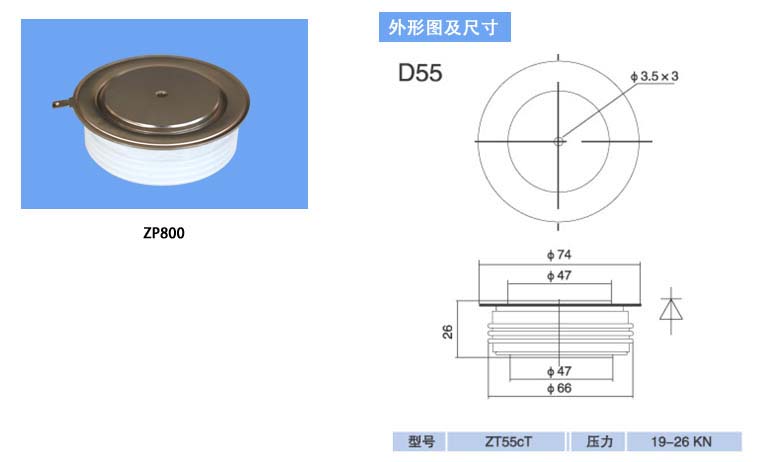

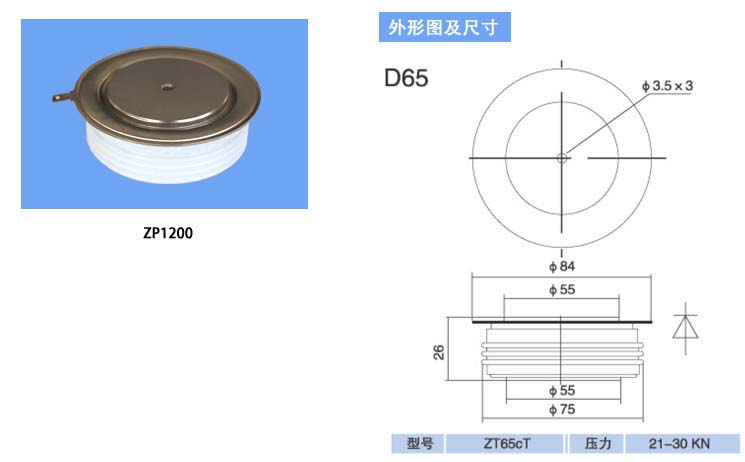

外形
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
10ms
|
|
|
25 ℃ |
Tjm |
|
|
|||
|
A
|
× 100V
|
KA
|
KA2S
|
MA
|
V/A
|
V
|
mΩ
|
℃/W
|
KN
|
||
|
200
|
2-10
|
2.8
|
40
|
16
|
1.8/600
|
0.73
|
0.68
|
0.09
|
3.3-5.5
|
||
|
200
|
11-20
|
2.8
|
40
|
16
|
1.8/600
|
0.7
|
0.86
|
0.09
|
3.3-5.5
|
||
|
300
|
2-10
|
4.2
|
90
|
30
|
1.8/900
|
0.98
|
0.31
|
0.065
|
5.3-10
|
||
|
300
|
11-20
|
4.2
|
90
|
30
|
1.8/900
|
1.08
|
0.35
|
0.065
|
5.3-10
|
||
|
400
|
2-10
|
5.6
|
160
|
30
|
1.8/1200
|
0.95
|
0.31
|
0.055
|
5.3-10
|
||
|
400
|
11-20
|
5.6
|
160
|
30
|
1.8/1200
|
1.06
|
0.35
|
0.055
|
5.3-10
|
||
|
400
|
11-20
|
5.6
|
160
|
40
|
1.8/1200
|
1.1
|
0.32
|
0.04
|
10-20
|
||
|
500
|
2-10
|
7
|
250
|
40
|
1.8/1500
|
1.06
|
0.31
|
0.04
|
10-20
|
||
|
600
|
2-10
|
8.4
|
350
|
40
|
1.8/1800
|
0.97
|
0.27
|
0.033
|
10-20
|
||
|
600
|
11-20
|
8.4
|
350
|
40
|
1.8/1800
|
1.05
|
0.3
|
0.033
|
10-20
|
||
|
600
|
11-20
|
8.4
|
350
|
40
|
1.8/1800
|
0.93
|
0.21
|
0.035
|
15-20
|
||
|
800
|
2-20
|
11
|
600
|
50
|
2.0/2400
|
0.88
|
0.17
|
0.035
|
15-20
|
||
|
800
|
31-38
|
11
|
600
|
80
|
2.2/2400
|
0.98
|
0.26
|
0.022
|
19-26
|
||
|
1000
|
2-10
|
14
|
980
|
50
|
2.0/3000
|
0.86
|
0.165
|
0.03
|
15-20
|
||
|
1000
|
11-20
|
14
|
980
|
50
|
2.0/3000
|
0.9
|
0.204
|
0.03
|
15-20
|
||
|
1000
|
21-30
|
14
|
980
|
80
|
2.0/3000
|
0.82
|
0.22
|
0.022
|
19-26
|
||
|
1200
|
2-10
|
17
|
1500
|
60
|
2.0/3000
|
0.82
|
0.132
|
0.03
|
18-25
|
||
|
1200
|
11-20
|
17
|
1500
|
80
|
2.0/3000
|
0.89
|
0.15
|
0.022
|
19-26
|
||
|
1200
|
31-38
|
17
|
1500
|
120
|
2.2/3000
|
0.9
|
0.125
|
0.02
|
21-30
|
||
|
1600
|
2-10
|
23
|
2600
|
80
|
2.0/3000
|
0.8
|
0.14
|
0.022
|
19-26
|
||
|
1600
|
11-20
|
23
|
2600
|
100
|
2.0/3000
|
0.78
|
0.131
|
0.02
|
21-30
|
||
|
1600
|
21-30
|
23
|
2600
|
120
|
2.0/3000
|
0.92
|
0.12
|
0.02
|
21-30
|
||
|
2000
|
11-20
|
28
|
3900
|
120
|
2.0/4000
|
0.73
|
0.1
|
0.02
|
21-30
|
||
|
2000
|
31-38
|
28
|
3900
|
160
|
2.2/4000
|
0.85
|
0.14
|
0.016
|
30-40
|
||
|
2500
|
11-20
|
35
|
6100
|
120
|
2.0/5000
|
0.725
|
0.11
|
0.016
|
27-34
|
||
|
2500
|
21-30
|
35
|
6100
|
160
|
2.0/5000
|
0.73
|
0.115
|
0.016
|
30-40
|
||
|
2500
|
31-38
|
35
|
6100
|
200
|
2.2/5000
|
0.95
|
0.138
|
0.011
|
35-47
|
||
|
3000
|
11-20
|
42
|
8800
|
160
|
2.0/5000
|
0.7
|
0.09
|
0.016
|
30-40
|
||
|
3500
|
11-20
|
44
|
9700
|
200
|
2.0/5000
|
0.93
|
0.08
|
0.011
|
35-47
|
||
